How to Restore Communication With the TCM (Without Replacing It Yet)

Table of Contents

• What Does “Lost Communication With TCM” Mean?
• Start with Power and Ground Checks
• Don’t Skip the Technical Service Bulletins
• Test CAN Bus Integrity
• Know When One Module Takes Down the Network
• Use a Wiring Diagram to Trace Faults
• Scan Tool Tips: What to Look For
• Common Causes You Can Fix Without Replacing the TCM
• When to Suspect a Bad TCM (And How to Confirm It)
• Don’t Replace the TCM Until You Know It’s Dead

When your scan tool shows “No Communication with TCM,” don’t replace the module. There are several ways to troubleshoot the issue and potentially restore functionality without shelling out for a new unit. If you’re wondering how to fix lost communication with TCM, this guide will walk you through practical checks—power, ground, CAN lines, and more! Need help diagnosing or programming your TCM? SOLO offers expert-level support and advanced repairs to get you back on the road.

What Does “Lost Communication With TCM” Mean?

When your scanner displays a “Lost Communication With TCM” code, the vehicle’s main computer, the ECM or PCM, no longer receives signals from the Transmission Control Module (TCM). This communication breakdown can trigger limp mode, where the transmission stays in one gear to protect the drivetrain and prevent further damage.

The TCM is a vital part of the Controller Area Network (CAN), the system that lets various control modules in your vehicle talk to each other. If communication is interrupted, it could be due to power loss, ground failure, damaged wiring, or issues within the CAN system.

Before jumping to conclusions, follow these steps:

• Check the wiring diagram for your vehicle’s specific make and model.
• Identify key circuits linked to the TCM (Transmission Control Module) and CAN (Controller Area Network) lines.
• Visually trace the circuits to inspect for:
  • Blown fuses
  • Shorted wires
  • Corroded connectors
  • Voltage drops at modules

These issues can cause the TCM to drop off the network.

Start with Power and Ground Checks

If you’re chasing a “Lost Communication With TCM” code, don’t overcomplicate it. Start with the power and ground. We see this always: a vehicle rolls in, stuck in limp mode, throwing a diagnostic trouble code, and the TCM isn’t even getting proper voltage.

The transmission control module depends on clean, consistent power and ground to function and communicate with the rest of the network. Any corrosion, voltage drop, or flaky ground can instantly cut that link. It won’t just kill communication; it’ll trigger transmission performance issues that mimic a failing transmission: harsh shifts, no upshifts, or being locked in one gear.

Grab your multimeter (not a test light) and check:

• Battery power to the TCM (typically ignition-switched or constant 12V)
• Ground resistance (should be under 0.1 ohm)
• Voltage drops under load

If any of those are off, fix that first. You can’t restore communication if the module doesn’t even have a heartbeat.

Don’t Skip the Technical Service Bulletins

Before you spend two hours tracing wires, check for Technical Service Bulletins (TSBs). Manufacturers release these when known problems—bad grounds, fuse location changes, revised wiring—cause widespread failures.

TSBs often describe exactly what’s wrong and how to fix it. For example, a bulletin might tell you that a corroded splice under the battery tray is knocking the TCM offline. That kind of intel can save hours and get your bay moving again.

Test CAN Bus Integrity

If your TCM has power and ground, but you’re still getting communication issues, it’s time to dig into the CAN bus—the data highway linking your TCM with other auto computers like the PCM, BCM, and ABS module. When that highway breaks down, modules go silent, and your scan tool shows “No Communication” errors or the dreaded check engine light.

Start with a visual inspection of the harness. Look for damaged wiring, rodent chews, pinched looms, or aftermarket installs that tapped into the wrong wires. From there, back-probe the CAN High and CAN Low lines at the TCM and check:

• Voltage with key ON (should hover around 2.5V for each line)
• Resistance across the CAN circuit (around 60 ohms total)
• Shorts to ground, battery positive, or each other

If you see voltage stuck at 5V or 0V or resistance way off spec, you likely have a fault dragging the whole network down.

Know When One Module Takes Down the Network

Sometimes, the TCM isn’t the problem—another module is jamming up the CAN lines. A faulty ABS, airbag, or infotainment unit can corrupt data flow and block your scan tool from talking to the TCM.

To isolate it:

1. Disconnect one module at a time while monitoring the network voltage.
2. Watch the CAN lines snap back to spec when the culprit is unplugged.
3. Reconnect modules after testing to avoid ghost codes.

Use a Wiring Diagram to Trace Faults

If you’re still facing communication signal loss and that trouble code won’t clear, it’s time to stop guessing and start tracing. A factory wiring diagram is your roadmap—it tells you exactly how the TCM connects to power, ground, the CAN network, and other modules.

Don’t rely on color codes alone. Wire colors vary across model years and trim levels. Pull the diagram for your specific VIN and confirm:

• TCM power source (fuse number, location, and whether it’s ignition-switched or constant)
• Ground location and attachment point
• CAN High / CAN Low PINs
• Signal routing, especially if the TCM is inside the engine compartment

Start from the TCM connector and physically trace each wire. Look for damage, corrosion, loose pins, or areas where heat or vibration could break continuity. Use the diagram to ID connectors and inline splices—these are common failure points, especially in older or high-mileage vehicles.

Scan Tool Tips: What to Look For

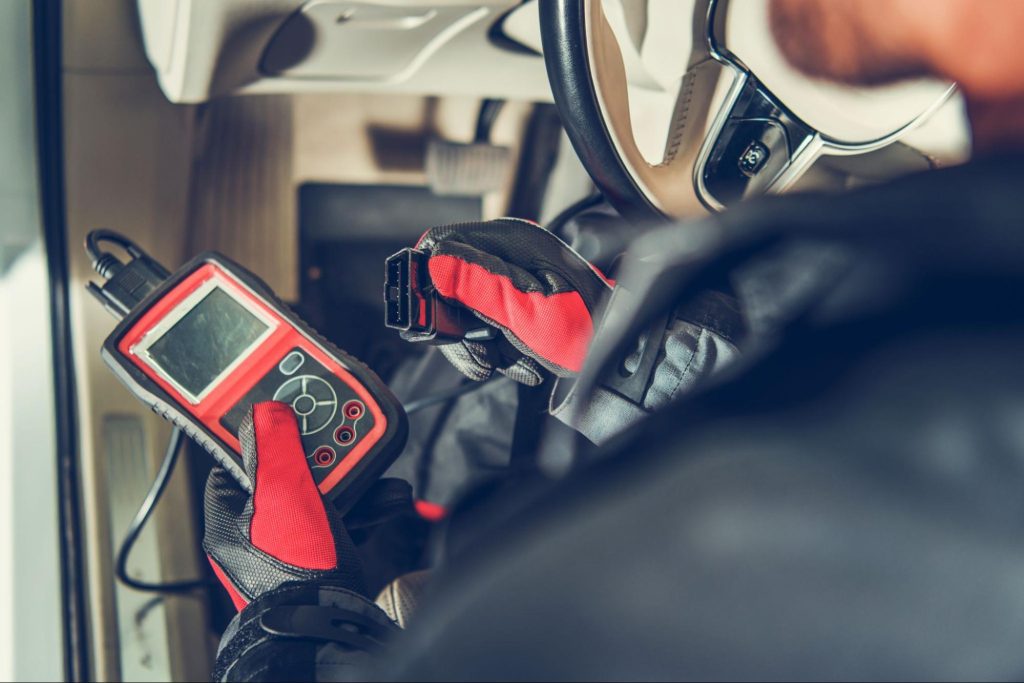

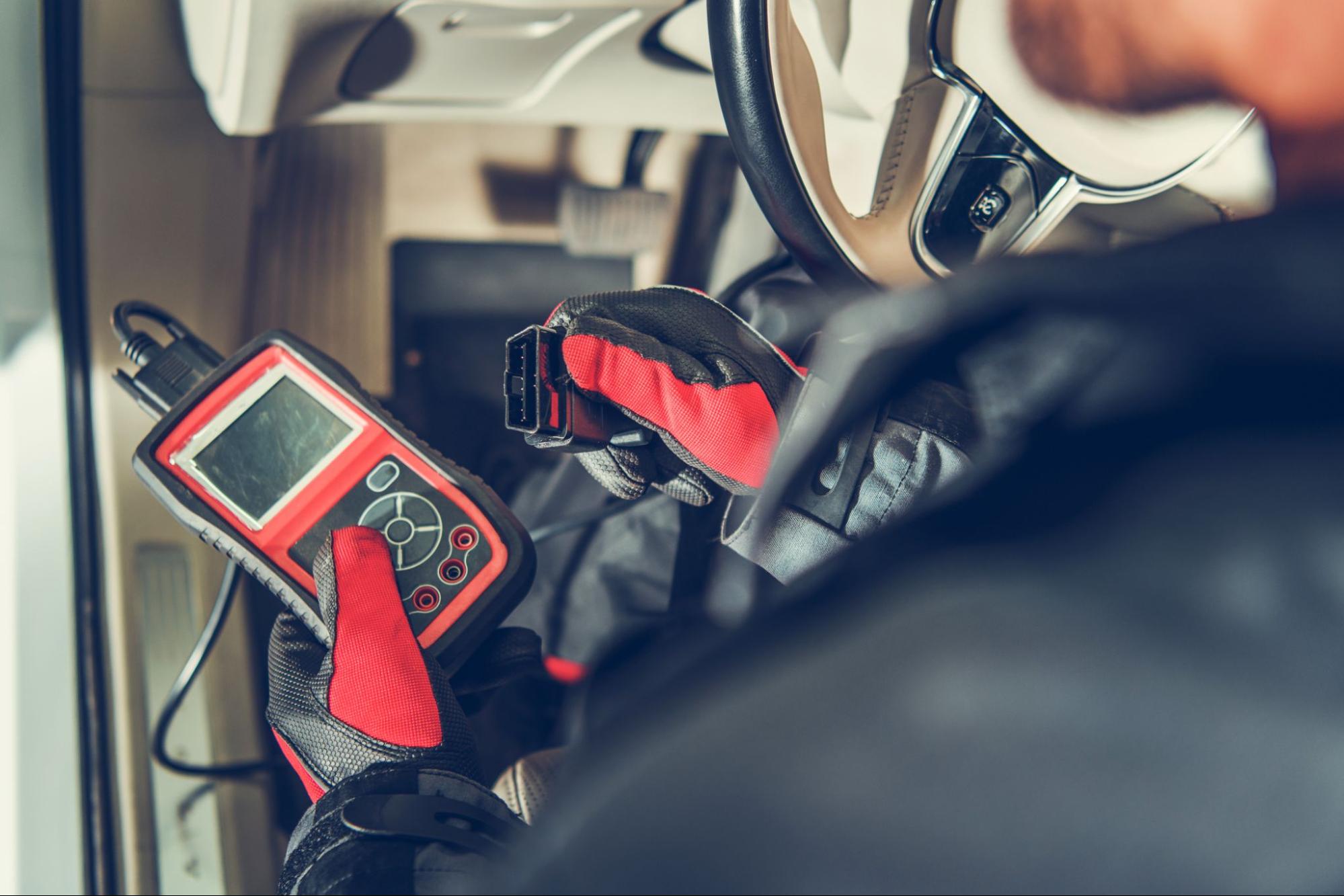

When working through transmission performance issues, your scan tool is your first line of defense. But it’s not just about reading code—it’s about interpreting the system behavior behind it.

Here’s what to focus on:

• Look for U0101 – Lost Communication: This code means the TCM has dropped off the Controller Area Network. If it’s present, communication is broken—and the fix starts with power, ground, and CAN line checks.
• Check for other module codes referencing the TCM: If multiple modules throw lost comm codes with the TCM, it’s most likely a wiring or network failure, not the module itself.
• Verify that the TCM is even showing up: Many scan tools allow you to view a list of detected modules. If the TCM is missing entirely, it’s either not powered or completely offline from the CAN bus.
• Compare live data when available: If the TCM does respond, see if it’s delivering expected gear data, shift commands, or input signals. Missing or erratic data could point to an internal fault.
• Cycle the ignition and clear codes after each test: Some codes, including U0101, may persist until power is cycled—even after repairs. Follow the proper reset procedures outlined in the service manual.
• Check the voltage at the TCM with the negative battery cable connected. Always use proper grounding during diagnosis. Inconsistent readings here often indicate ground faults, not module failure.

Common Causes You Can Fix Without Replacing the TCM

Just because your scanner flashes a fault code like U0100 or you’re dealing with a comms issue doesn’t mean the transmission control module is dead. Nine times out of ten, it’s something upstream—simple, overlooked, and fixable without diving into full-blown car computer repair.

Here’s what to check before you even think about replacing the TCM:

• Blown or weak fuses – Always verify TCM power and ignition feeds. A blown micro fuse is enough to cut communication.
• Loose or corroded grounds – One poor connection can destroy power or signal integrity. Clean, tighten, and test for voltage drop under load.
• Bent or backed-out connector pins – Ubiquitous after recent service. A slightly misaligned pin can cause communications issues and trigger a no-response state.
• Water intrusion or connector corrosion is Common in vehicles with TCMs mounted low or in the engine compartment. Always unplug and visually inspect.

Don’t confuse these fixable problems with symptoms of a bad transmission control module, like erratic shifting, gear hunting, or the TCM showing up and reporting invalid sensor data. If the module powers up, responds to your scan tool, and fails internally, that’s when replacement or car computer repair makes sense.

Don’t write off your TCM until you’ve tested every wire, connection, and fuse in the loop. It’s probably not the villain—it’s the victim.

When to Suspect a Bad TCM (And How to Confirm It)

Once you’ve ruled out every power, ground, CAN bus, and loose connection, and the code U0100 or similar fault code keeps returning, it may be time to consider that the transmission control module is at fault. But this isn’t guesswork—it’s about the process of elimination backed by data.

A bad TCM won’t always be completely dead. Sometimes, it powers up but throws inconsistent diagnostic codes, fails to send or receive communication signals, or misreads inputs like gear position or vehicle speed. In some cases, it may work intermittently, which can cause inconsistent shift patterns or the appearance of multiple system errors.

To confirm a faulty TCM:

• Isolate the module—either on a bench or in the vehicle.
• Use known good power and ground connections.
• Verify scan tool communication by attempting to connect directly to the TCM.
• Double-check supporting components:
• All relevant wires and connectors
• No other modules are disrupting the network

If everything checks out and there’s still no clean handshake or normal operation, the TCM is likely at fault.

Finally, disconnect the battery before removing or reinstalling the module. With every hot-plugged reconnection, the risk of triggering more diagnostic codes or damaging the network increases.

Don’t Replace the TCM Until You Know It’s Dead

Losing communication with the transmission control module doesn’t always mean it’s time for a replacement. Most issues—power loss, bad grounds, CAN faults, blown fuses, or loose connections—can be diagnosed and resolved with the right tools, solid wiring diagrams, and a methodical approach.
